In the realm of machine learning, the goal is to build models that can accurately predict outcomes on unseen data. However, a common challenge lies in achieving this balance. Two primary pitfalls that can hinder model performance are Overfitting and Underfitting.

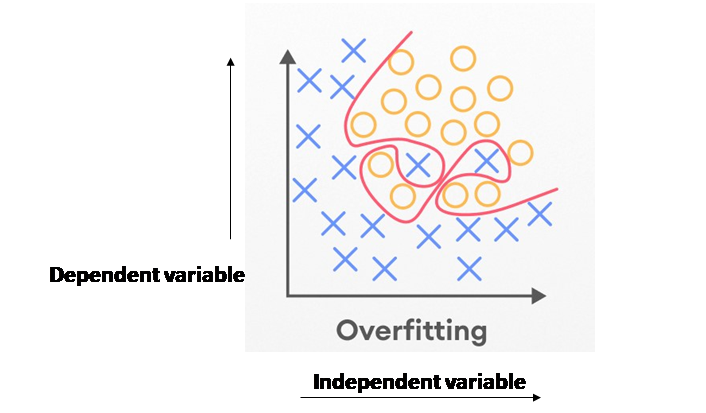

Overfitting

Overfitting occurs when a model learns the training data too well, capturing noise and random fluctuations instead of the underlying patterns. This leads to excellent performance on the training data but poor generalization to new, unseen data.

Characteristics of Overfitting:

  • Low Bias: The model captures the training data well, minimizing errors on the training set.
  • High Variance: The model is highly sensitive to small changes in the training data, leading to significant variations in performance on different datasets.

Causes of Overfitting:

  • Excessive Model Complexity: Highly complex models with numerous parameters can easily memorize the training data, leading to overfitting.
  • Insufficient Training Data: When the training dataset is small, the model may overfit to the limited information, failing to generalize to unseen data.
  • Noise in Data: The presence of noise or irrelevant features in the training data can mislead the model, leading it to focus on spurious patterns.

Techniques to Reduce Overfitting:

  • Data Augmentation: Artificially increase the size of the training data by creating variations of existing data points (e.g., rotating images, flipping images).
  • Feature Selection/Reduction: Select the most relevant features and discard irrelevant ones.
  • Regularization: Add a penalty term to the model's loss function to discourage excessive complexity (e.g., L1/L2 regularization).
  • Cross-Validation: Evaluate model performance on multiple subsets of the data to get a more robust estimate of its generalization ability (e.g., k-fold cross-validation).
  • Early Stopping: Monitor the model's performance on a validation set during training and stop the training process when performance on the validation set starts to degrade.
  • Ensemble Methods: Combine predictions from multiple models to reduce variance and improve generalization (e.g., bagging, boosting).

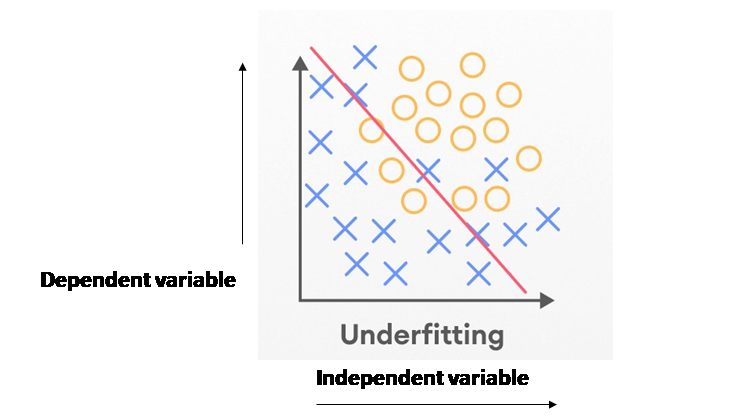

Underfitting

Underfitting occurs when a model is too simple to capture the underlying patterns in the data. This results in poor performance on both the training and test data.

Characteristics of Underfitting:

  • High Bias: The model's assumptions about the data are too simplistic, leading to systematic errors.
  • Low Variance: The model's performance is relatively consistent across different datasets, but this consistency is due to its inability to learn the true underlying patterns.

Causes of Underfitting:

  • Insufficient Model Complexity: Using overly simple models (e.g., linear models for highly non-linear data) can lead to underfitting.
  • Limited Training Data: A small dataset may not provide enough information for the model to learn complex relationships.
  • Noise in Data: If the training data contains significant noise, it can hinder the model's ability to learn the true underlying patterns.

Techniques to Reduce Underfitting:

  • Increase Model Complexity: Explore more complex models (e.g., from linear regression to polynomial regression or decision trees).
  • Increase Training Data: Gather more data to provide the model with more information to learn from.
  • Feature Engineering: Create new features from existing data that better represent the underlying relationships.
  • Remove Noise: Clean the data by removing or handling outliers and noisy features.

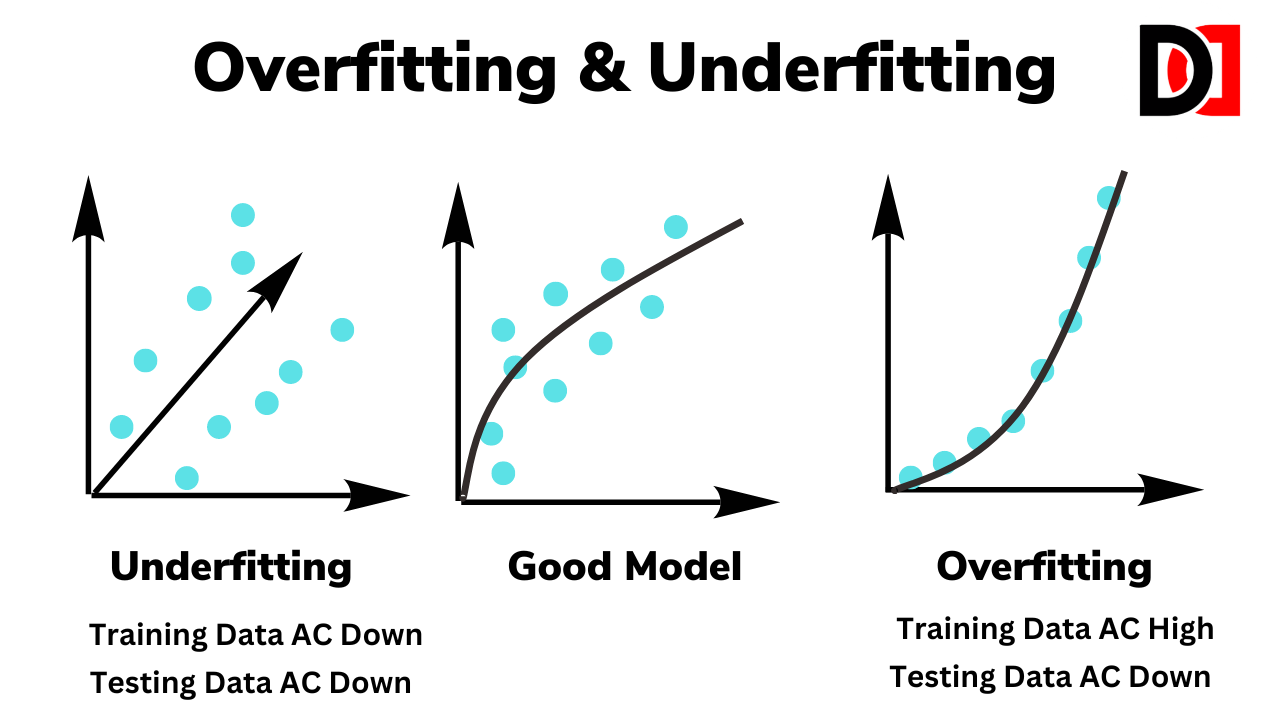

Overfitting and Underfitting Example:

Finding the Right Balance

The key to building effective machine learning models lies in finding the right balance between bias and variance, thus avoiding both overfitting and underfitting. This often involves careful model selection, hyperparameter tuning, and rigorous evaluation.
